User Guide

Overview​

The NATS OpenFMB & Protobuf Inspector is a web-based debugging and inspection tool for monitoring and interacting with NATS messaging systems that use OpenFMB protobuf messages. The tool provides real-time visibility into message traffic, supports multiple simultaneous connections, and enables users to subscribe to topics, publish messages, and inspect protobuf message structures.

Key Features​

  • Multiple Connection Support: Manage multiple NATS server connections simultaneously
  • Topic Subscription: Subscribe to NATS subjects using wildcards and view incoming messages in real-time
  • Message Inspection: View decoded protobuf messages in both JSON tree view and flat property format
  • Search & Filter: Search through message properties and filter subscribed topics
  • Publishing: Publish custom messages to NATS topics
  • Request/Response: Send request messages and receive responses
  • Custom Protobuf Support: Publish custom protobuf messages

Getting Started​

Connecting to a NATS Server​

  1. Click the "Add a connection..." button in the main interface
  2. In the connection dialog that appears, enter your NATS server endpoint in the Server Endpoint field
    • Format: wss://[hostname]:[port]
    • Example: wss://ieee13.dev.oesinc.dev:9222

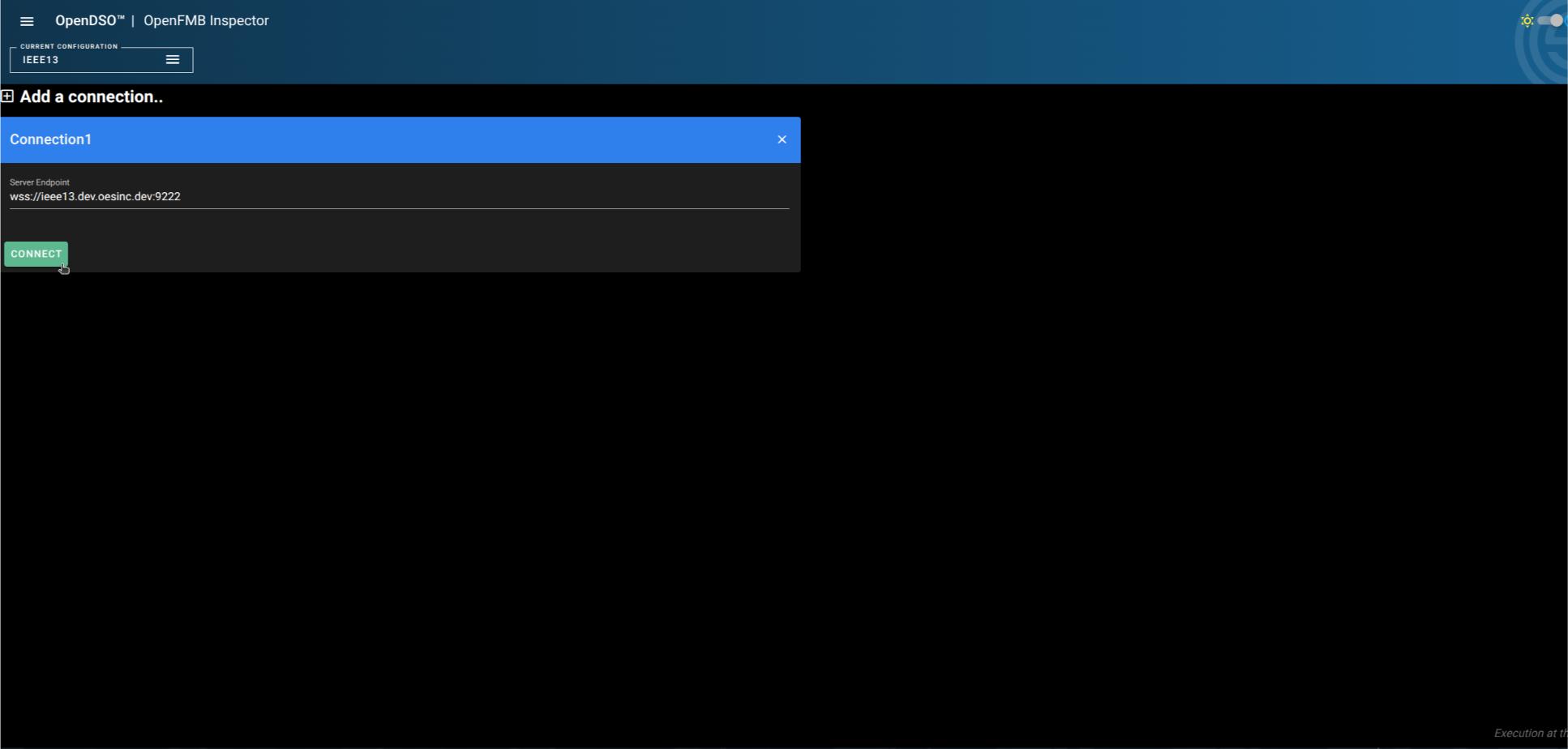

Connection Dialog

  1. Click the CONNECT button to establish the connection
  2. Once connected, you'll see four tabs available:
    • SUBSCRIBE: Monitor incoming messages on topics
    • PUBLISH: Send messages to topics
    • REQUEST: Send request/response messages
    • PUBLISH CUSTOM PROTO: Send custom protobuf messages

Subscribing to Topics​

Basic Subscription​

  1. Open the SUBSCRIBE tab in your connection window
  2. In the Subject field, enter the NATS subject pattern you want to monitor
    • Use > as a wildcard to subscribe to all topics
    • Use specific patterns like openfmb.> to subscribe to all OpenFMB topics
    • Use more specific patterns like openfmb.breakermodule.> to subscribe to specific device types

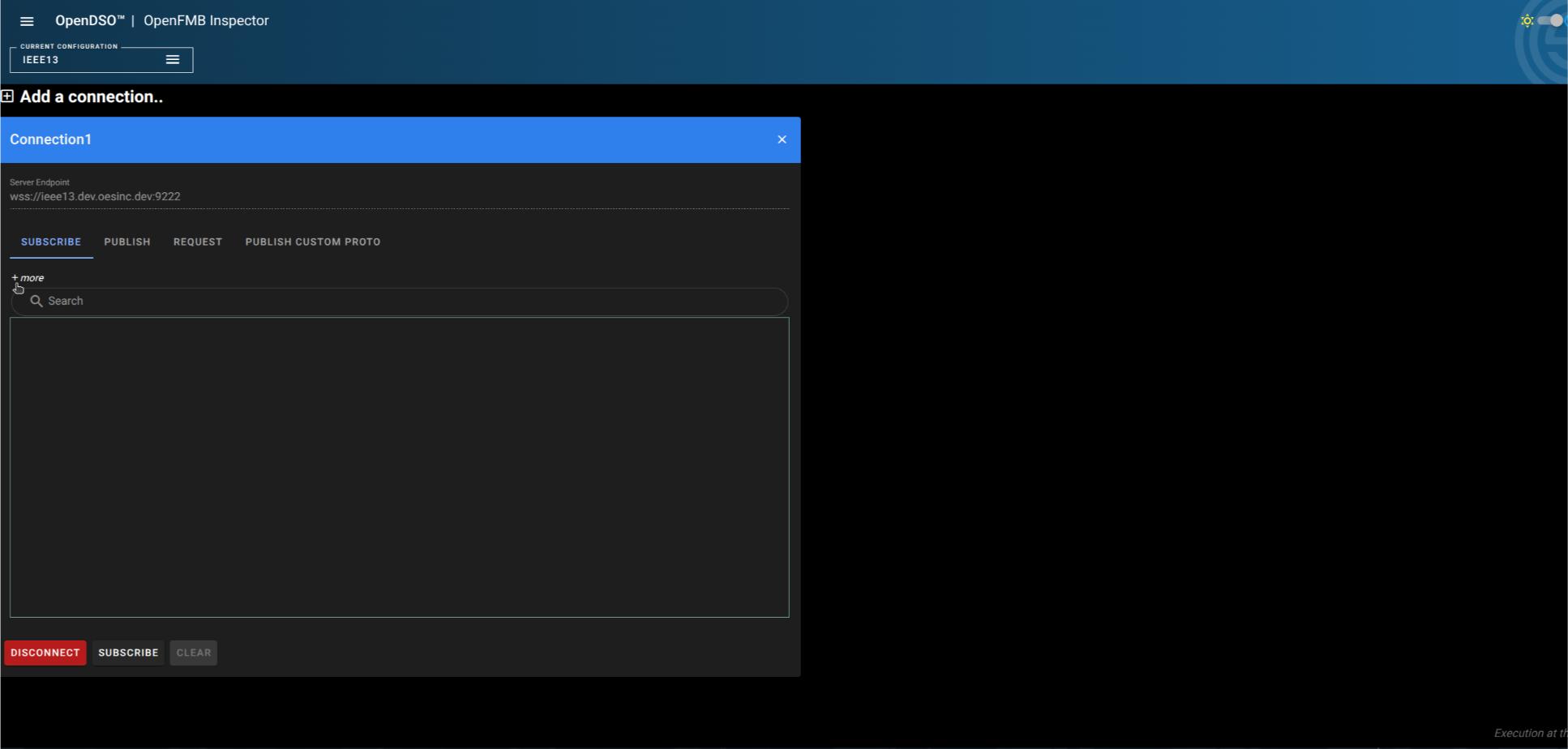

Subscribe Tab

  1. Click the SUBSCRIBE button to start receiving messages

Viewing Subscribed Messages​

Once subscribed, incoming messages appear in a scrollable list. Each message entry displays:

  • Device: The device type (e.g., LoadStatusProfile, BreakerStatusProfile)
  • Subject: The full NATS subject the message was published to
  • Device ID: The unique identifier of the device

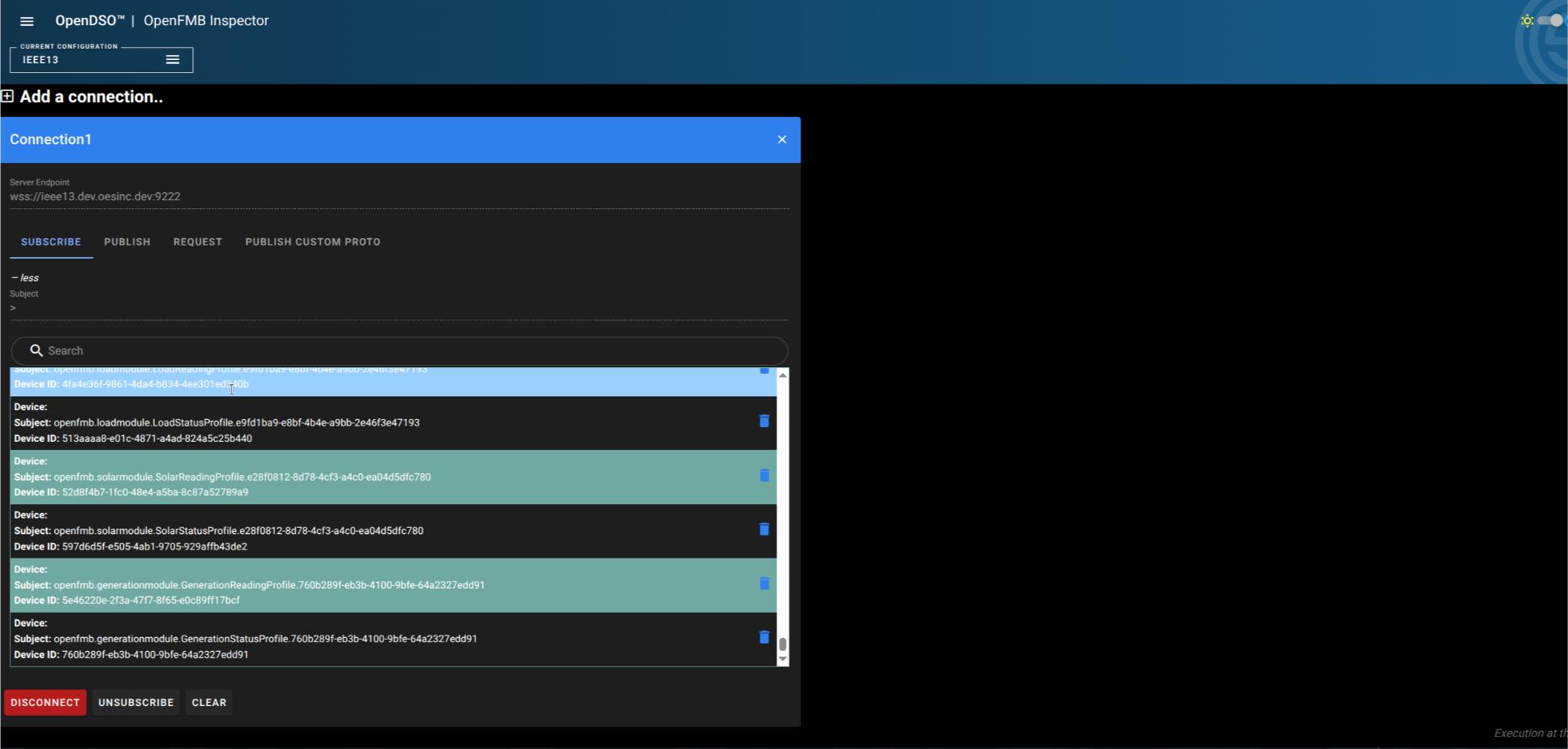

Message List

Searching and Filtering​

Use the Search box above the message list to filter messages:

  • Search by device type, subject, or device ID
  • The search filters the displayed messages in real-time

Search Feature

Inspecting Message Contents​

Click on any message in the list to view its detailed contents. The inspector provides multiple viewing options:

JSON Tree View​

The default view shows the protobuf message decoded into a hierarchical JSON structure:

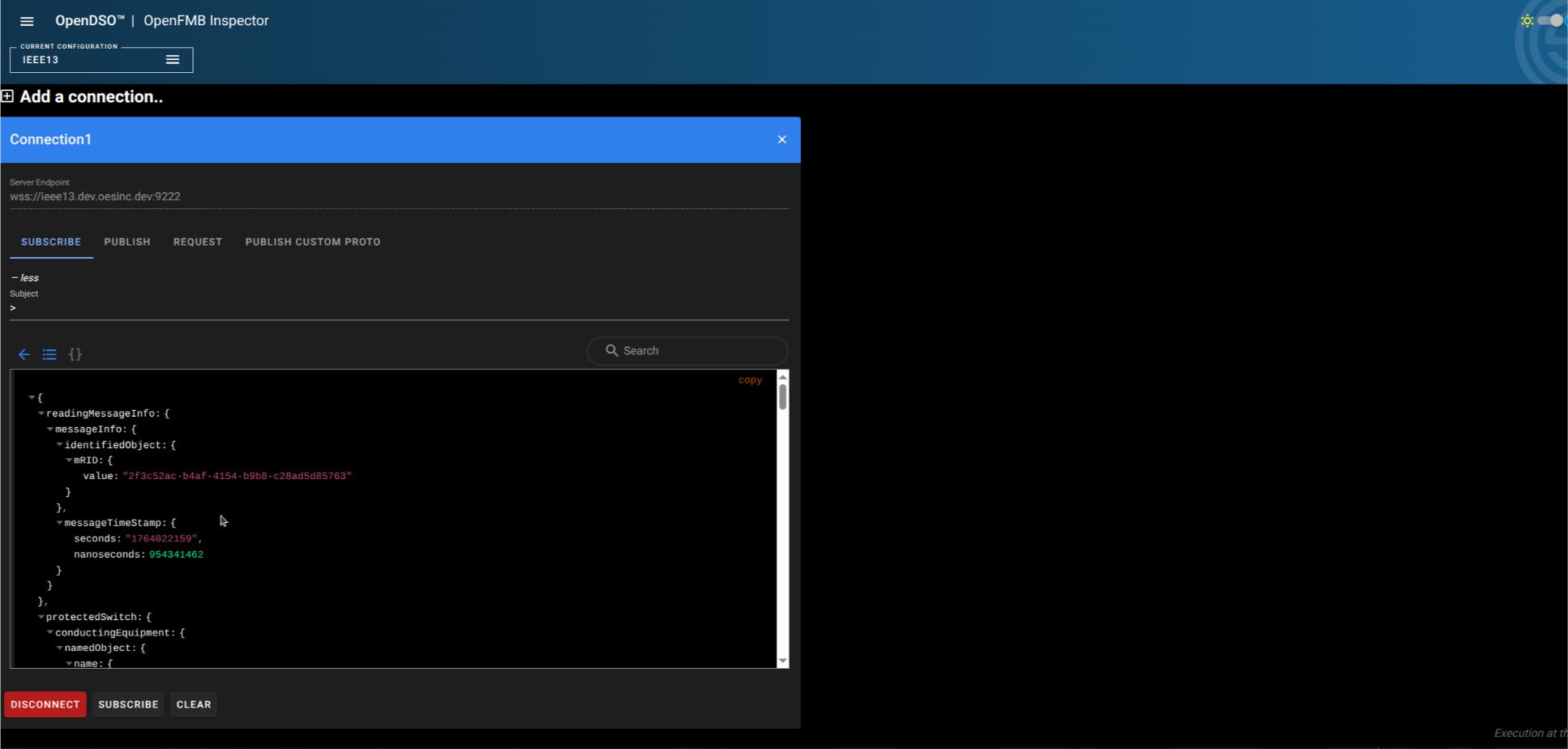

JSON Tree View

  • Navigate through nested objects by expanding/collapsing nodes
  • View all message fields and their values
  • Use the Copy button to copy the entire message to clipboard

Flat Property View​

Click the View properties button to switch to a flat list of all properties:

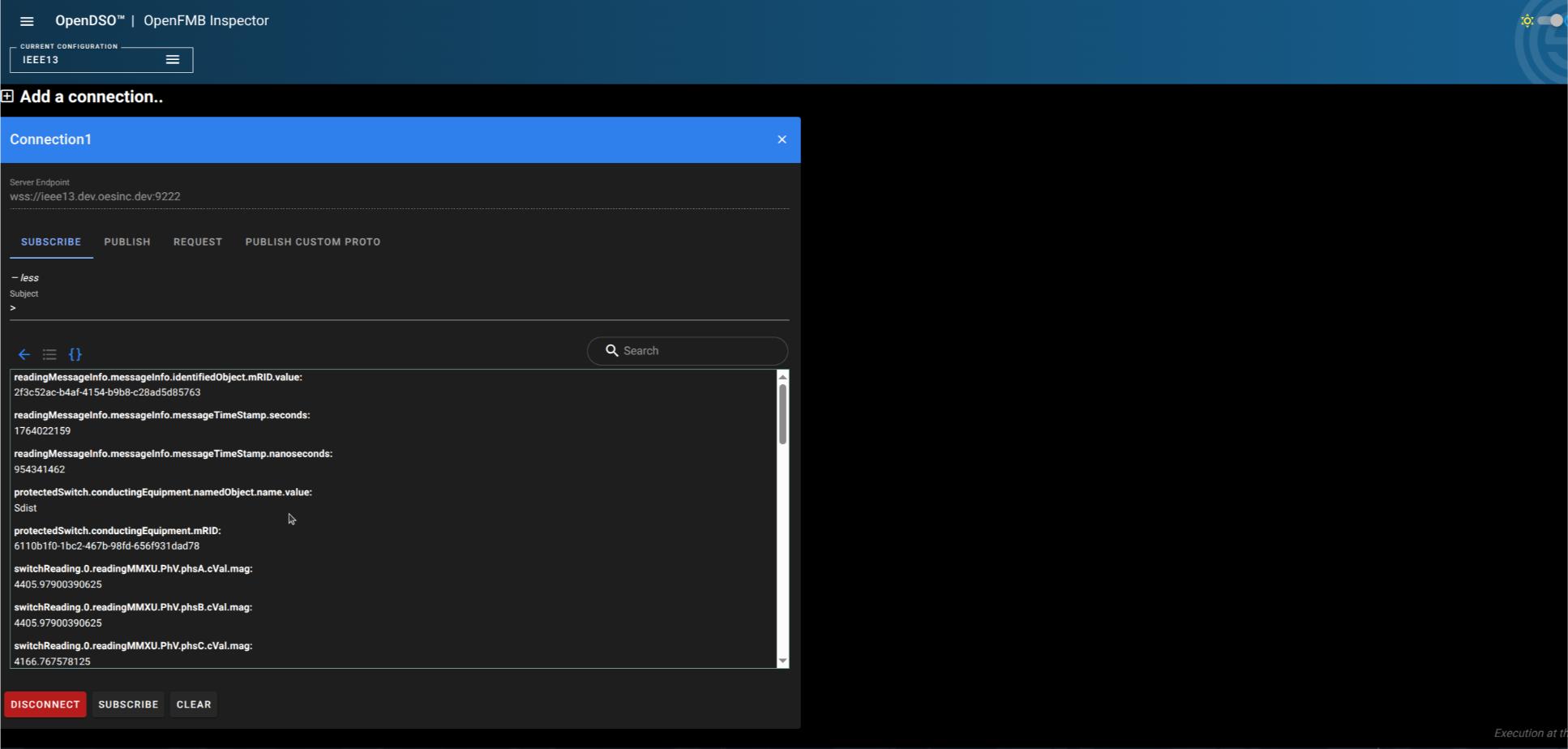

Property View

  • Shows all properties in path.to.property: value format
  • Useful for quickly scanning specific values
  • Easier to copy individual property paths

Searching Within Messages​

Use the search box in the message inspector to filter displayed properties:

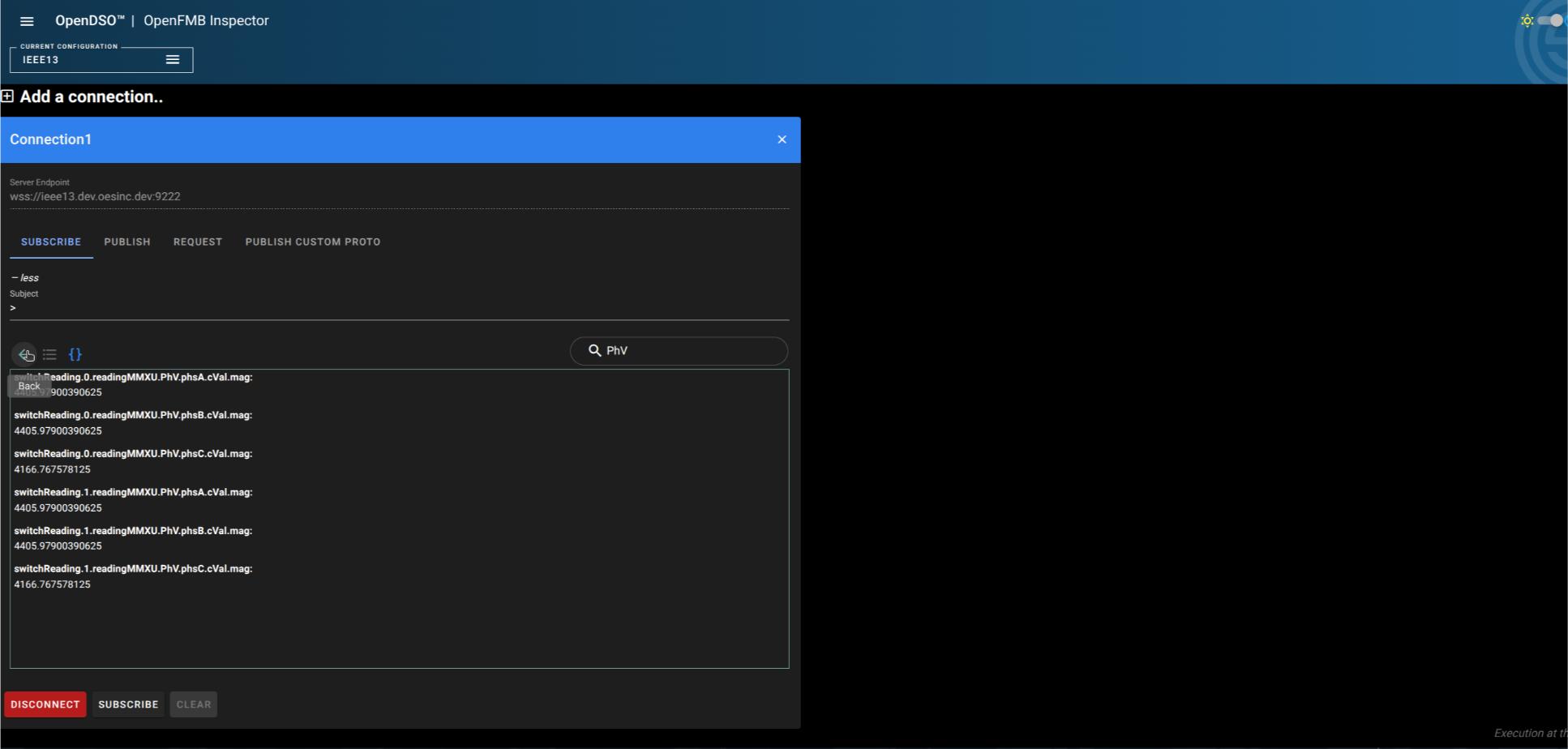

Message Search

  • Search for specific property names or values
  • Works in both tree and flat property views
  • Example: Search for "PhV" to find all phase voltage readings

Managing Subscriptions​

  • Click UNSUBSCRIBE to stop receiving messages on the current subscription
  • Click CLEAR to remove all messages from the display
  • Click DISCONNECT to close the connection

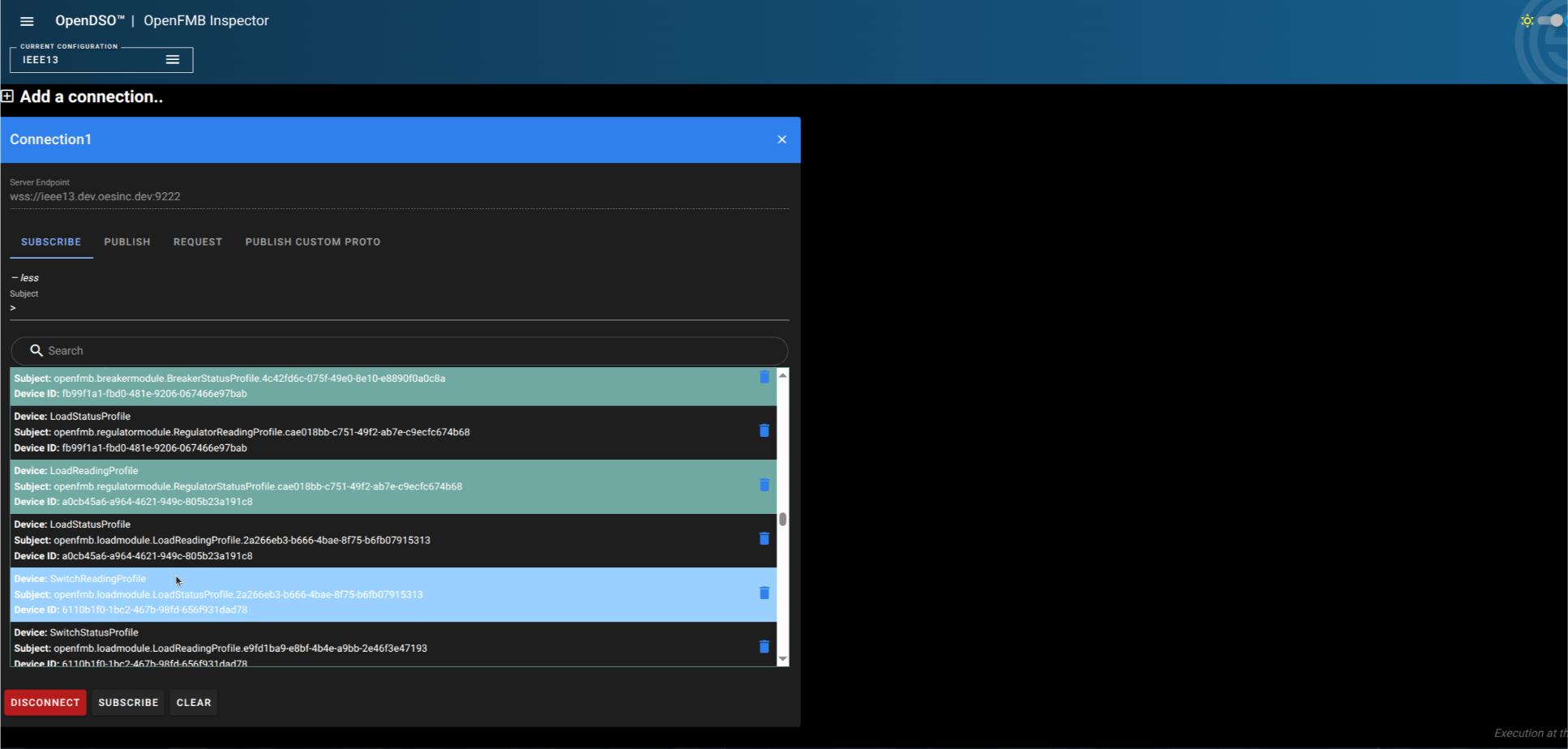

Subscription Management

Advanced Filtering Techniques​

Subscribing to Specific Message Types​

You can subscribe to specific OpenFMB message types using subject patterns:

  • openfmb.breakermodule.> - All breaker module messages

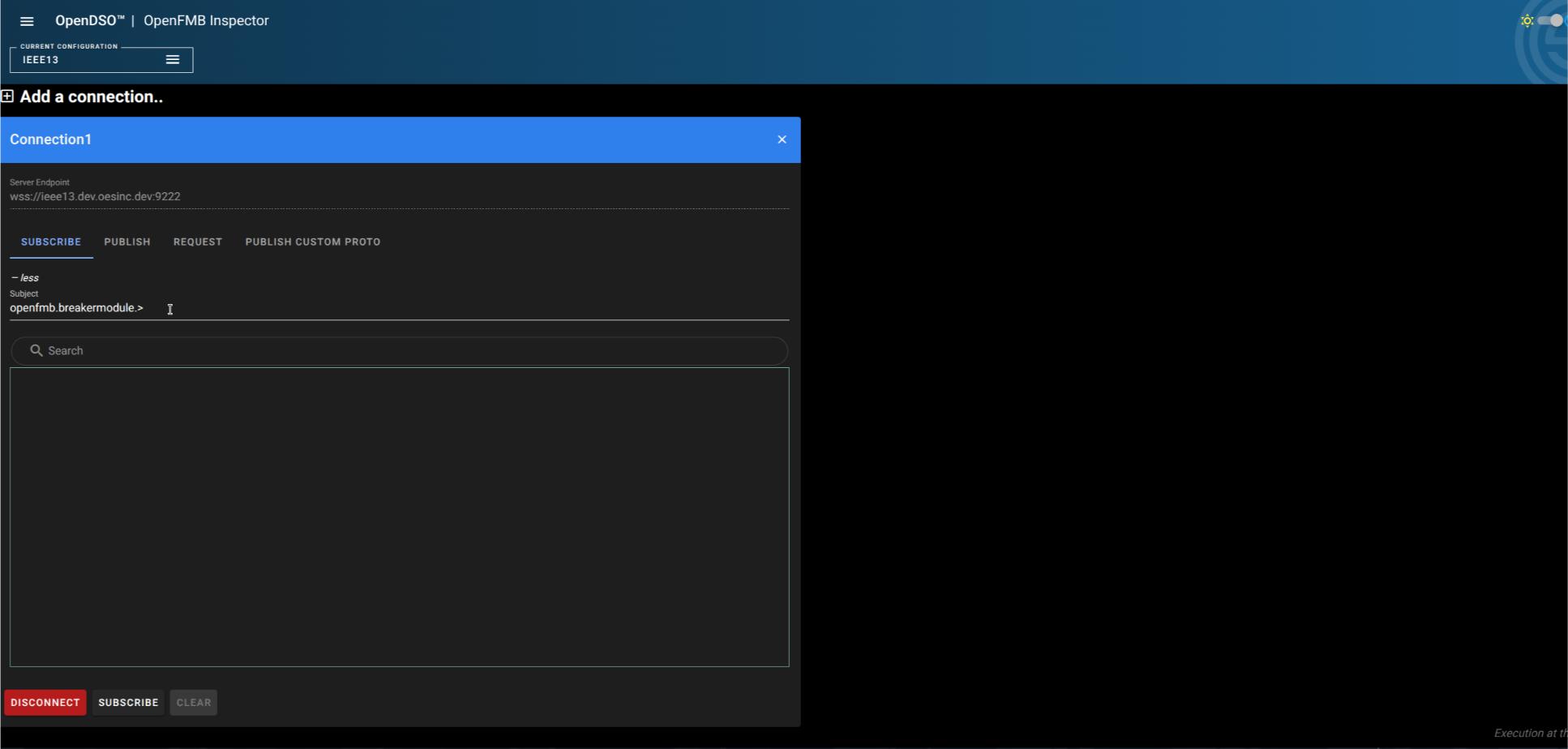

Breaker Filter

  • openfmb.loadmodule.> - All load module messages
  • openfmb.solarmodule.> - All solar module messages
  • openfmb.regulatormodule.> - All regulator module messages
  • opendso.> - All OpenDSO control messages

OpenDSO Filter

Subscribing to Specific Devices​

To monitor a specific device by ID, use the full subject pattern:

openfmb.breakermodule.*.6e86c913-aaf2-445f-b8f9-d4f754096186

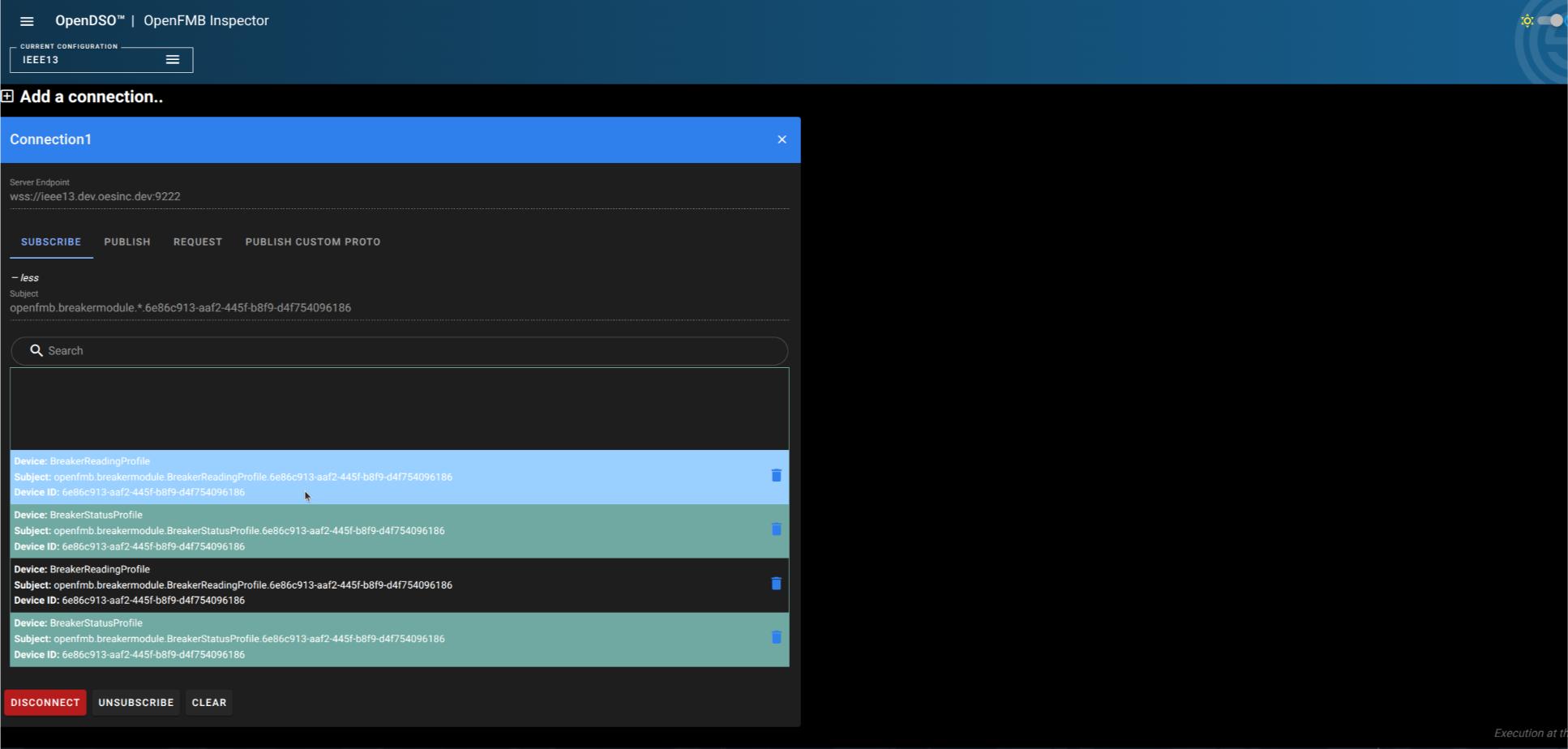

Device Specific

This shows all message types for the specific device with that ID.

Publishing Messages​

Publishing JSON Messages​

  1. Switch to the PUBLISH tab in your connection window
  2. Enter the subject in the Subject field (e.g., a.test.topic)
  3. Enter your message in JSON format in the Message field:
{
  "testJSONData": "TestValue"
}

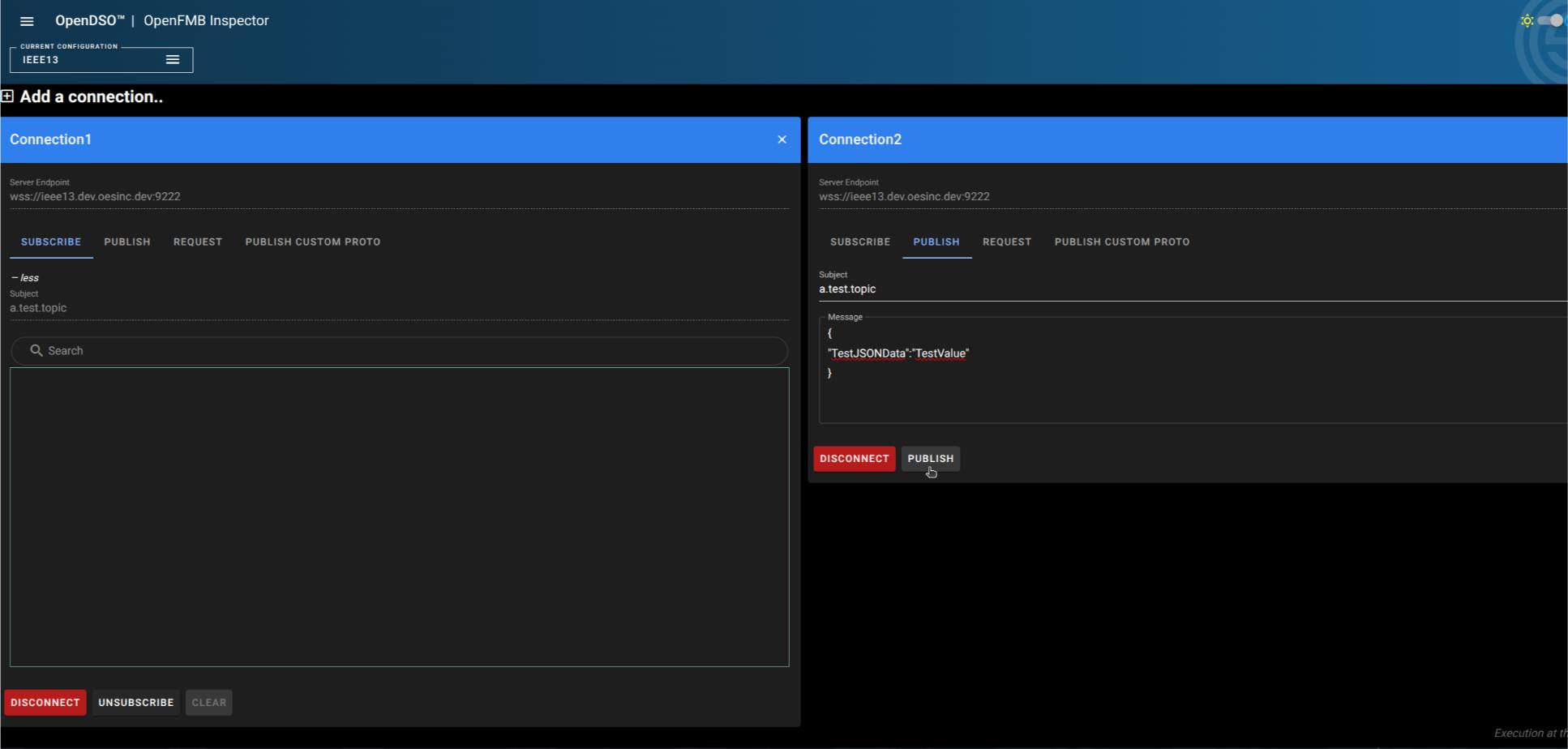

Publish Tab

  1. Click the PUBLISH button to send the message

Testing Publish/Subscribe​

You can verify message publishing by:

  1. Opening a second connection to the same NATS server
  2. Subscribing to the topic in one connection
  3. Publishing to that topic from the other connection
  4. Observing the message appear in the subscriber

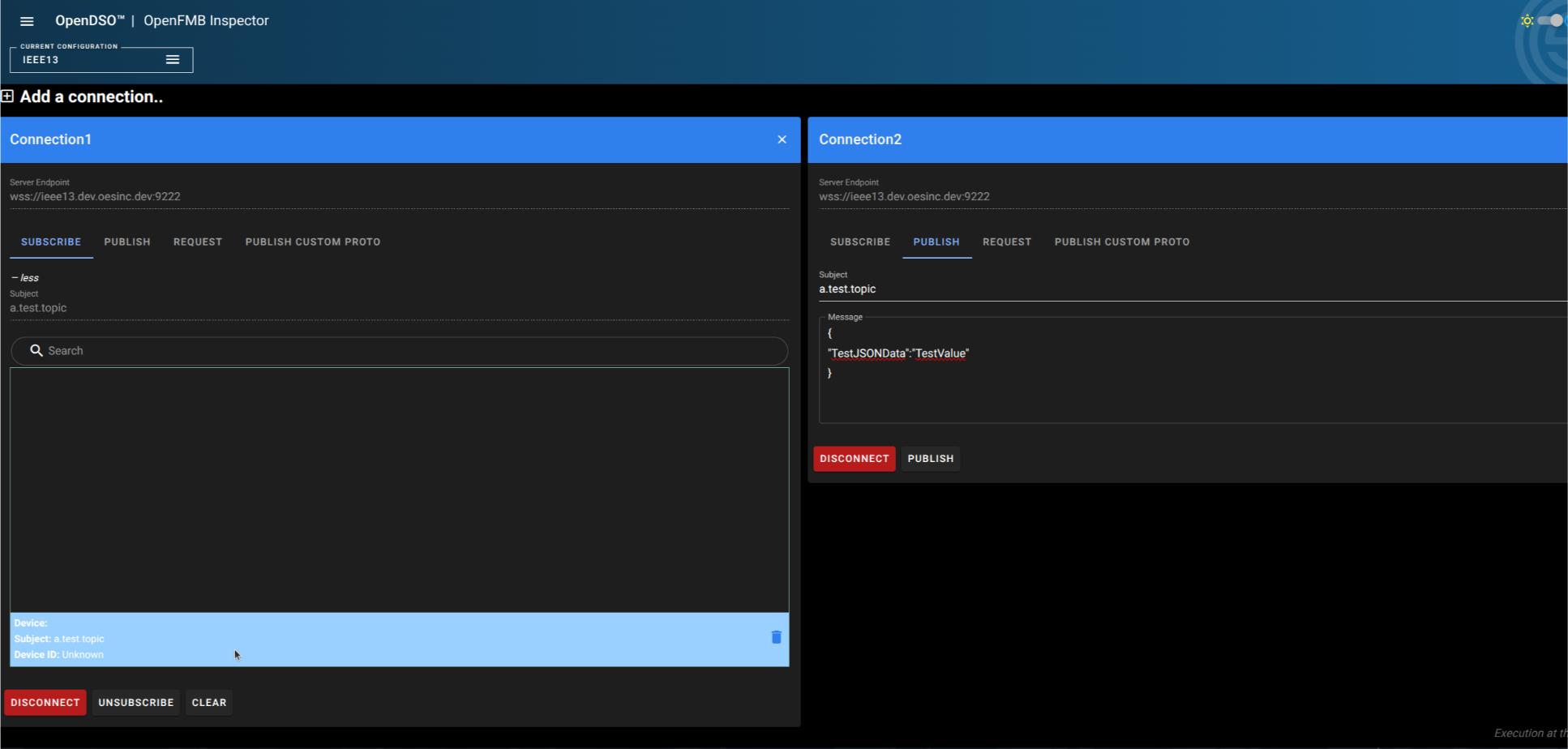

Testing

Working with Multiple Connections​

The tool supports managing multiple NATS connections simultaneously:

  1. Click "Add a connection..." to create additional connections
  2. Each connection appears as a separate window
  3. You can subscribe to different topics on each connection
  4. Useful for comparing messages between different NATS servers or monitoring different topic patterns

Multiple Connections

Configuration Management​

The tool supports multiple configuration profiles:

  • Select different configurations from the CURRENT CONFIGURATION dropdown at the top of the interface
  • Each configuration can contain different server endpoints and connection settings

Use Cases​

Debugging OpenFMB Integrations​

  • Subscribe to openfmb.> to see all OpenFMB traffic
  • Inspect message structures to verify correct protobuf encoding
  • Verify device IDs and message routing

Monitoring Specific Devices​

  • Use device-specific subject patterns to monitor individual equipment
  • Track status changes and profile updates
  • Verify message timing and frequency

Testing Message Flows​

  • Publish test messages to verify system responses
  • Use the REQUEST tab for request/response patterns
  • Monitor multiple topics simultaneously to trace message propagation

Troubleshooting​

  • Search for specific properties within messages
  • Compare messages from different devices
  • Verify message content matches expected values
  • Check for missing or incorrect fields

Tips and Best Practices​

  1. Use Wildcards Wisely: Start with broad subscriptions (openfmb.>) then narrow down to specific patterns
  2. Search Effectively: Use the message-level search to quickly find specific fields or values
  3. Monitor Performance: Be cautious with high-volume topics; use specific subscriptions to reduce message load
  4. Copy Messages: Use the Copy button to save message examples for documentation or debugging
  5. Multiple Windows: Open multiple connections to compare messages across different servers or topics
  6. Clear Regularly: Use the CLEAR button to remove old messages and improve interface performance

Troubleshooting​

Cannot Connect​

  • Verify the NATS server endpoint is correct and accessible
  • Check that the server is running and accepting WebSocket connections
  • Ensure the port number is correct

No Messages Appearing​

  • Verify your subscription pattern is correct
  • Check that messages are actually being published to the topic
  • Try using > to subscribe to all topics to verify connectivity

Messages Not Decoding​

  • Ensure the server is sending valid protobuf messages
  • Verify the protobuf schema matches the messages being sent
  • Check for custom protobuf definitions that may need to be loaded

Additional Features​

REQUEST Tab​

Use this tab to send request/response style messages where you expect a reply from the NATS server.

PUBLISH CUSTOM PROTO Tab​

This advanced feature allows you to publish custom protobuf message types that may not be standard OpenFMB profiles.
